The F-16XL: A Vision That Bridged Fighter and Bomber Capabilities
The General Dynamics F-16XL was a groundbreaking aircraft that pushed the boundaries of what a fighter jet could achieve. Developed in the early 1980s, it was a radical modification of the F-16 Fighting Falcon, designed to serve as a long-range strike platform while maintaining the agility expected of a fighter. Its unique design aimed to bridge the gap between traditional fighters and bombers, offering increased range, payload capacity, and versatility. Though it never entered active service, its legacy continues to influence modern aviation.
A Radical Design for a New Role
The F-16XL was created under the Supersonic Cruise and Maneuver Prototype (SCAMP) program, which sought to develop an aircraft capable of performing deep-strike missions. At the time, the U.S. Air Force was looking to replace its aging F-111 Aardvark, a medium-range fighter-bomber that had been used for decades. The goal was to find a plane that could carry heavy payloads over long distances while still being able to engage in air-to-air combat.

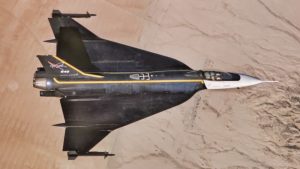

To meet these demands, General Dynamics modified the standard F-16 with a number of significant changes. The most notable was the introduction of a cranked-arrow delta wing, which provided a much larger surface area than the original wing. This change increased internal fuel capacity by about 65% and allowed the aircraft to carry roughly twice the ordnance of a standard F-16. The fuselage was also lengthened, and the tail section was canted upward, further altering the aircraft's aerodynamics.
Competing for the Future of Tactical Aviation
The F-16XL was entered into the Enhanced Tactical Fighter (ETF) competition in 1981, where it faced off against the McDonnell Douglas F-15E Strike Eagle. While the XL offered a lower cost and greater commonality with existing F-16 models, it ultimately lost the competition in 1984. The decision was based on several factors, including development risk, engine-out survivability, and the potential for future upgrades. The F-15E, with its twin-engine configuration, was seen as a more reliable option for the Air Force’s evolving needs.
Despite not entering service, the two prototypes of the F-16XL were not discarded. Instead, they were transferred to NASA in 1988 for research purposes. Over the next two decades, the aircraft were used to study supersonic efficiency, high-lift performance, and other aerodynamic concepts. They remained in NASA’s flight test programs until their retirement in 2009, when they were eventually stored at Edwards Air Force Base.
A Unique Combination of Capabilities
One of the most remarkable aspects of the F-16XL was its ability to carry a substantial weapons load while maintaining a level of agility uncommon for such a large aircraft. It featured 17 external hardpoints, allowing it to carry up to 15,000 pounds of bombs, missiles, or fuel tanks—roughly double the capacity of a standard F-16. This made it well-suited for deep-strike missions, where the ability to deliver large payloads over long distances is critical.
However, the increased weight and size came at a cost. The aircraft struggled with high-g turns and dogfight performance, which limited its effectiveness in close-combat scenarios. The cranked-arrow delta wing helped improve lift-to-drag ratios, but it could not fully compensate for the trade-offs associated with carrying heavier loads.
Lessons for Modern Aviation
Although the F-16XL never saw operational use, its design principles continue to resonate in today’s military aviation landscape. The questions it raised about balancing range, payload, and agility are now central to programs like the Next Generation Air Dominance (NGAD) and the Navy’s F/A-XX initiative. These projects aim to develop sixth-generation aircraft that can perform both air-to-air and air-to-ground missions with enhanced stealth, range, and payload capabilities.
Modern aircraft like Boeing’s F-47, developed under the NGAD program, are expected to carry larger internal payloads than current fighters, echoing the ambitions of the F-16XL. Similarly, the F/A-XX is envisioned as a versatile strike fighter that can operate in a wide range of environments.
A Legacy That Endures
The F-16XL may have been a "what if" in aviation history, but its influence is undeniable. It demonstrated the potential of reimagining fighter designs to meet evolving mission requirements. Today, as militaries around the world seek to balance speed, range, and firepower, the lessons learned from the F-16XL remain relevant. Its story serves as a reminder of the importance of innovation and the ongoing pursuit of technological advancement in the field of aerospace.
